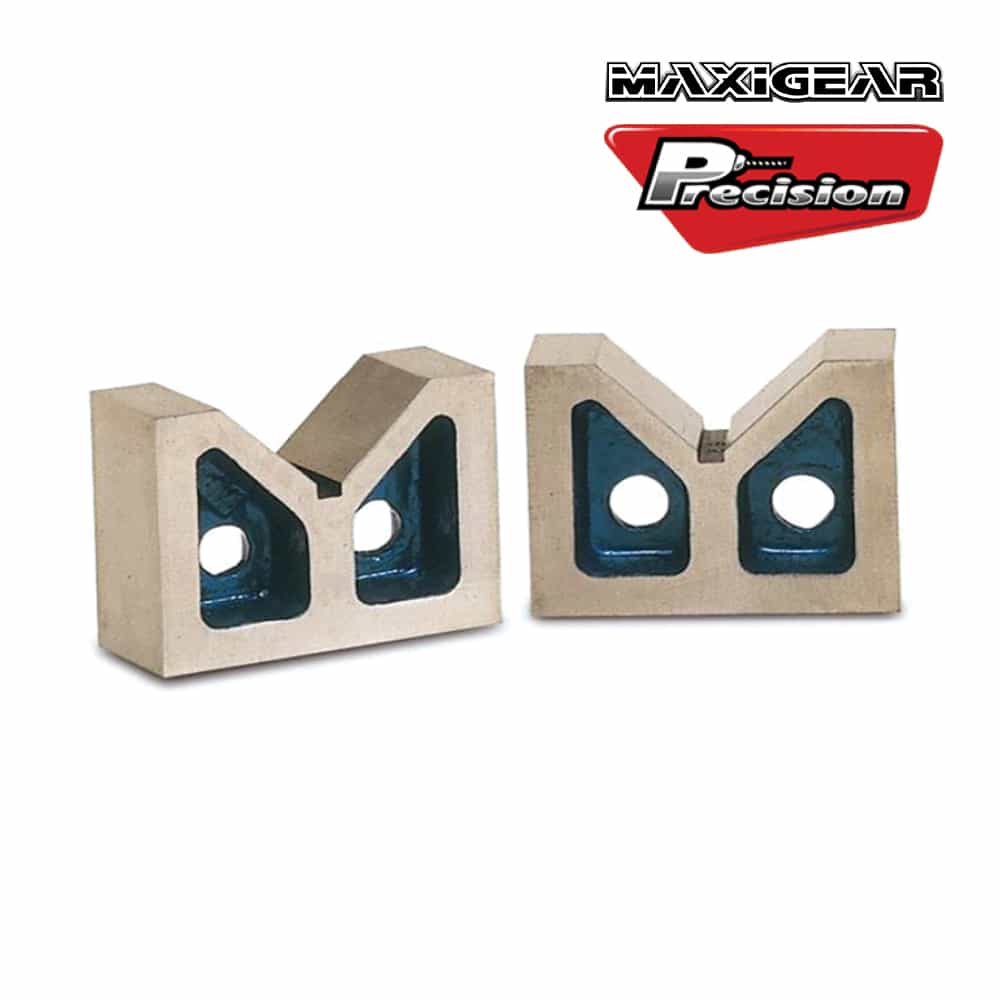

Made of high quality seasoned castings. Blocks are accurately ground square & parallel. Supplied in matched & numbered pairs. Parallelism tolerance of Vee Axis to base per 6 inch length within 30 microns.
Squareness tolerance of Vee Axis to end faces within 25 microns.
| SKU | Part Number | Description | Price Guide |
|---|---|---|---|
| VBCI100 | Vee Blocks Cast Iron Without Clamps, Width of Vee 50mm (Dimensions 100 x 65 x 41mm) | $155.00 | |
| VBCI125 | Vee Blocks Cast Iron Without Clamps, Width of Vee 50mm (Dimensions 125 x 80 x 50mm) | $205.00 | |
| VBCI160 | Vee Blocks Cast Iron Without Clamps, Width of Vee 82mm (Dimensions 150 x 90 x 63mm) | $300.00 | |
| VBCI200 | Vee Blocks Cast Iron Without Clamps, Width of Vee 100mm (Dimensions 205 x 140 x 100mm) | $760.00 | |
| VBCI250 | Vee Blocks Cast Iron Without Clamps, Width of Vee 125mm (Dimensions 255 x 168 x 125mm) | $1,565.00 | |
| VBCI300 | Vee Blocks Cast Iron Without Clamps, Width of Vee 165mm (Dimensions 305 x 205 x 180mm) | $2,170.00 |
View our range in our Latest Catalogue.
