MBPA7700: DASQUA 80Kgs Magnetic Base for Digital Dial Test Indicators Industrial Precision Indicators Stand Holder

Specifications

• Holding Power: 80kg
• Dimensions of Base: 58x50x55
• Main Pole: φ12x177
• Sub Pole: φ10x165
• Dia. of Clam Hold: φ6/φ8
• Weight: 1.6kg

Features

• Solid structure with electroplated surfaces, precision ground end-faces
• With fine adjustment device, which is heat-treated to ensure stability and durability
• With clamp holes of 6mm, 8mm, which satisfy the use of most indicators and test indicators
• 150° V-grooved base can be placed on the cylindrical surfaces for easily fixing the indicators
• Well selected ferrite permanent magnet with magnetic force greater than calibration value
• On/off switch for magnet, easy to move the base without the influence of magnetic force

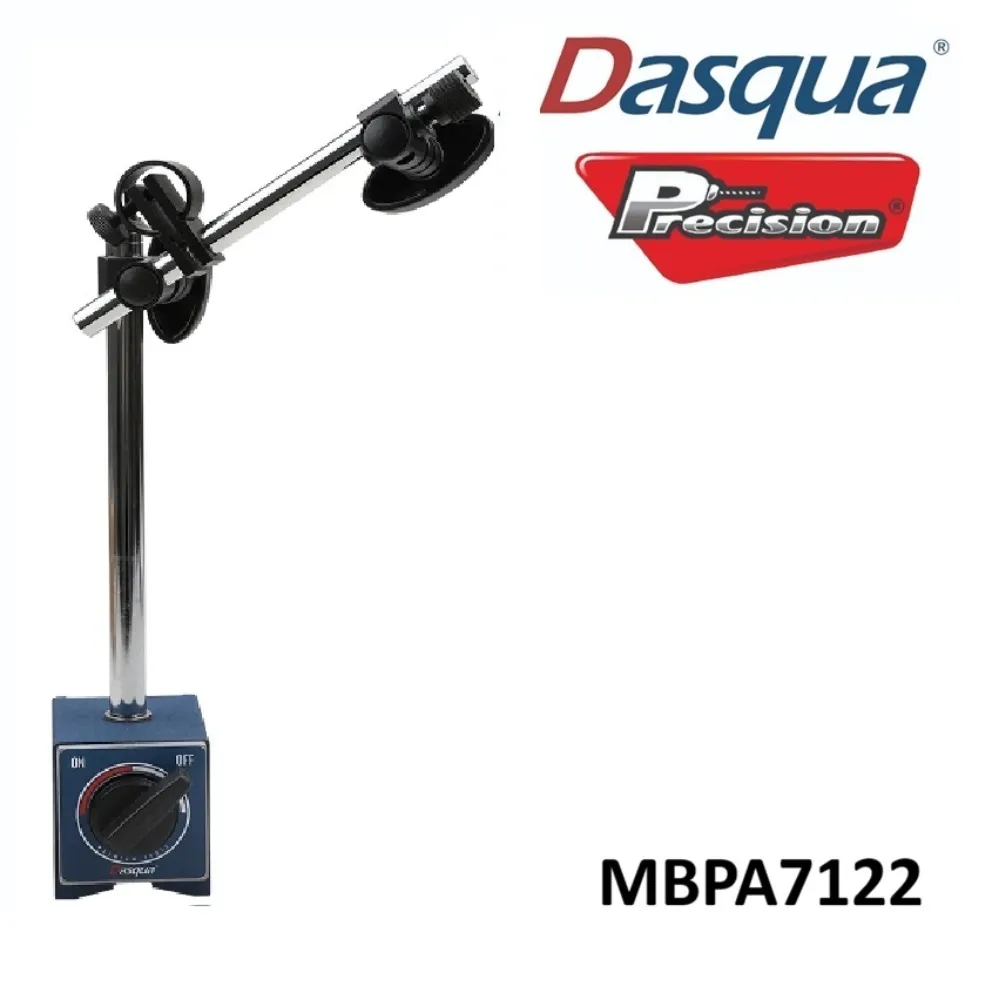

MBPA7122: DASQUA 60Kgs Magnetic Base for Digital Dial Test Indicators Industrial Precision Indicators Stand Holder with Fine Adjustment

Features

• 150° V-grooved base can be placed on the cylindrical surfaces as well as flat surfaces for easily fixing the indicators.
• Well selected ferrite permanent magnet with magnetic force greater than calibration value
• On/off switch for magnet, easy to move the base without the influence of magnetic force. CNC
• Solid structure with surfaces electroplated and end-faces
• With clamp holes of φ4mm, φ8mm, 3/8”, which satisfy the use of most indicators and test indicators
• With fine adjustment device, which is heat-treated to ensure stability and durability

Specifications

• Product Name: Magnetic Base Stand Holder with Fine Adjustment
• Holding Power: 60Kgs
• Dimension of Base: 60x50x55cm
• Dia. of Clam Hold: 8 mm / 4 mm / 3/8″ Diameter
  With Fine Adjustment
