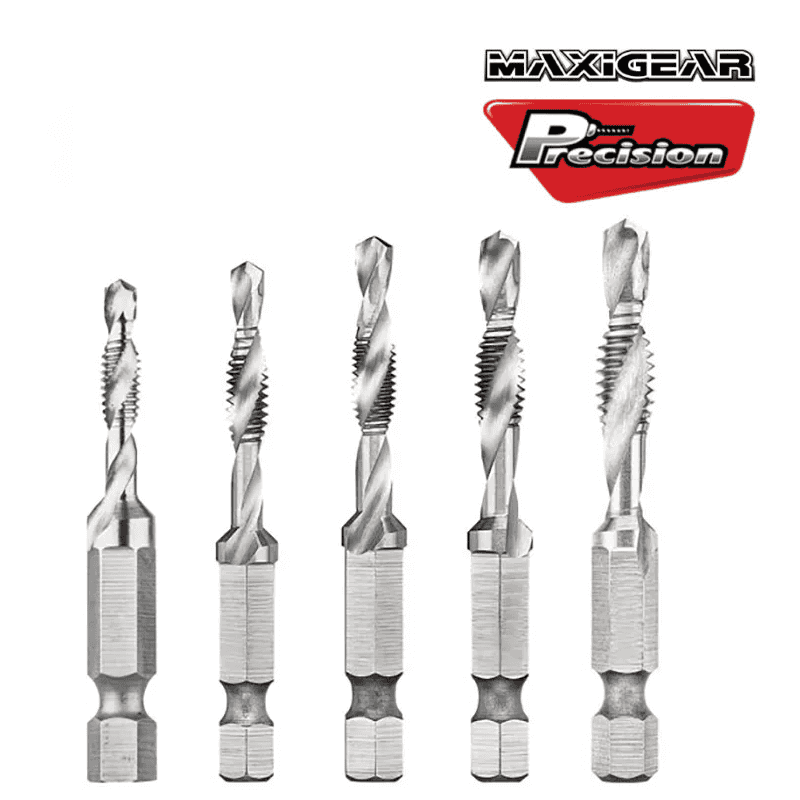

Made of High Speed Steel, Drill & Tap in one operation using either a portable power tool or a stationary drilling machine such as a pedestal drill.
Back taper beyond tap helps prevent thread damage from over drilling.
1/4" hex shank ensures strong connection to the drill chuck.
Designed to drill and tap through-holes up to 2 X nominal diameter. Drill point must break through the part prior to threading.
Applications include, Electrical, Construction, Plumbing, Automotive, Cabinet Makers, Heating Ventilation & Air Conditioning installers.
| SKU | Part Number | Description | Price Guide |
|---|---|---|---|
| CDT3M | Combination Drill & Tap M3 X 0.5 Pitch 1/4 Hex | $25.00 | |
| CDT4M | Combination Drill & Tap M4 X 0.7 Pitch 1/4 Hex | $25.00 | |
| CDT5M | Combination Drill & Tap M5 X 0.8 Pitch 1/4 Hex | $30.00 | |
| CDT6M | Combination Drill & Tap M6 X 1.0 Pitch 1/4 Hex | $30.00 | |
| CDT8M | Combination Drill & Tap M8 X 1.25 Pitch 1/4 Hex | $40.00 | |
| CDT10M | Combination Drill & Tap M10 X 1.5 Pitch 1/4 Hex | $45.00 |
View our range in our Latest Catalogue.
