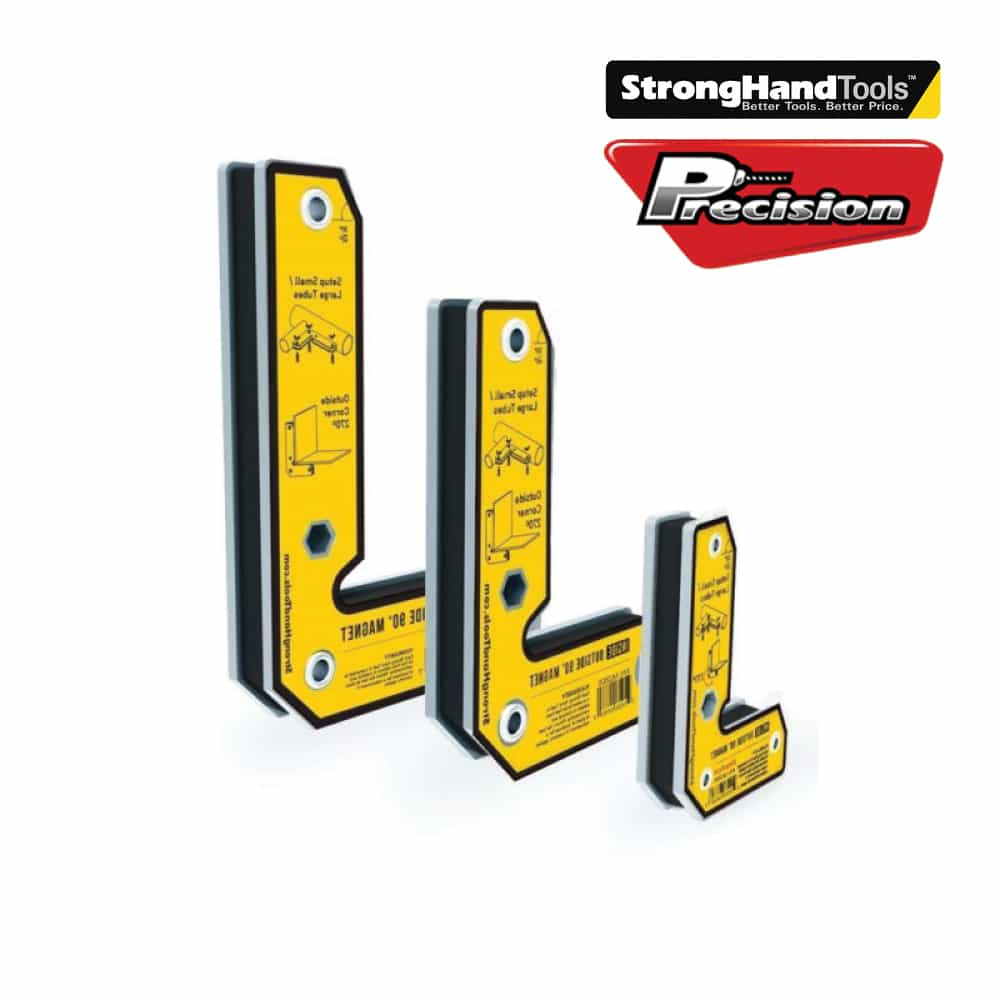

Inside / Outside Magnets - MLD Series

Hold stock from the outside, leaving clearance for inside welds or hold stock from the inside for outside welds.

• Hold and position sheet metal, round pipes, square, angled or flat stock.
• The Inside / Outside Angle Magnets are constructed from two independent rectangular magnets for consistent, undiminished magnetic force when both sides are attached to work pieces
• Use mounting holes to link two magnets together for use as fixtures
• Use hex hole on magnet for breakaway leverage
• 90 degree with 30 & 60 degree

MLDT350

2 Pack - Includes MLD300 and MLD500

• Hold stock from the outside, leaving clearance for inside welds, or hold stock from the inside for outside welds.
• Hold and position sheet metal, round pipes, square, angled or flat stock.
• The Inside / Outside Angle Magnets are constructed from two independent rectangular magnets for consistent, undiminished magnetic force when both sides are attached to workpieces.
• Use mounting holes to link two magnets together for use as fixturing elements.
• Use hex hole on magnet for breakaway leverage.

MLD300

• Angles: 90o (30o, 60o)
• Height: 75.5 mm
• Width: 52 mm
• Thickness: 14 mm
• Mag. Pull Force: 9 kg

MLD500

• Angles: 90o (30o, 60o)
• Height: 125 mm
• Width: 85 mm
• Thickness: 18 mm
• Mag. Pull Force: 15 kg
