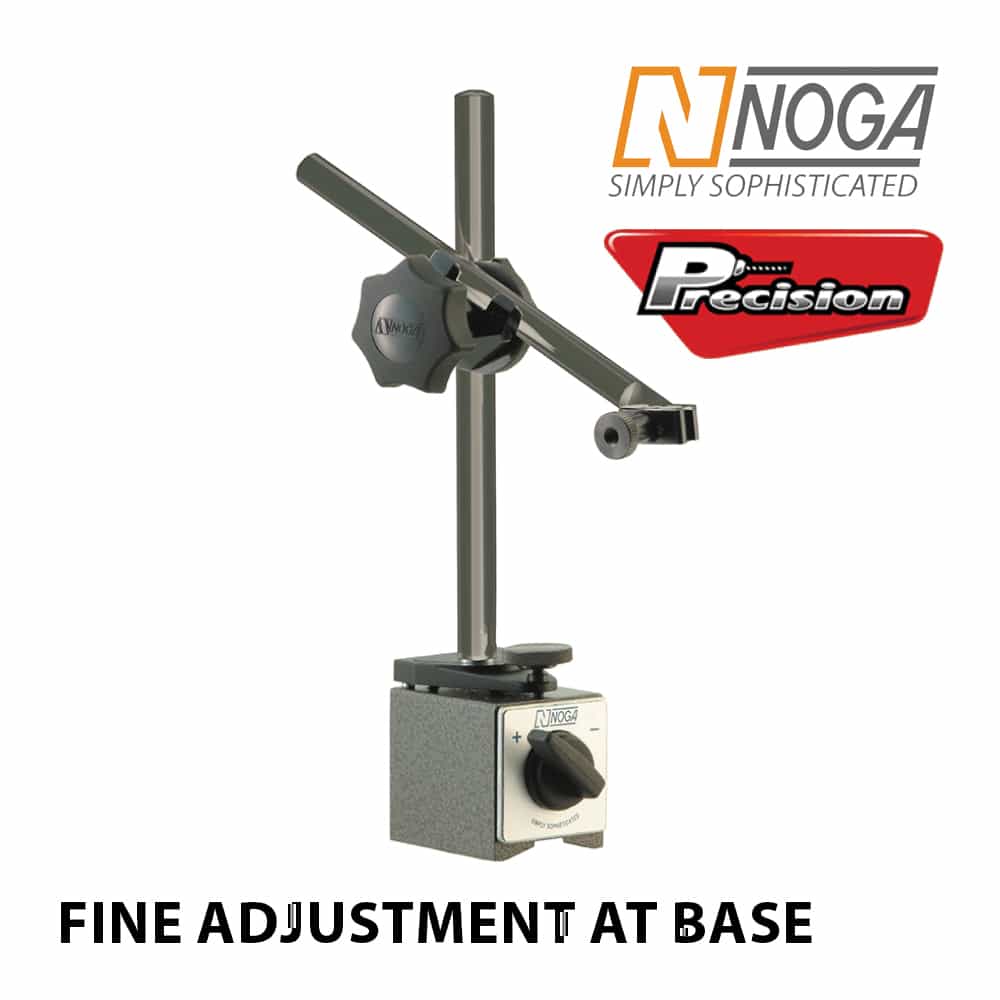

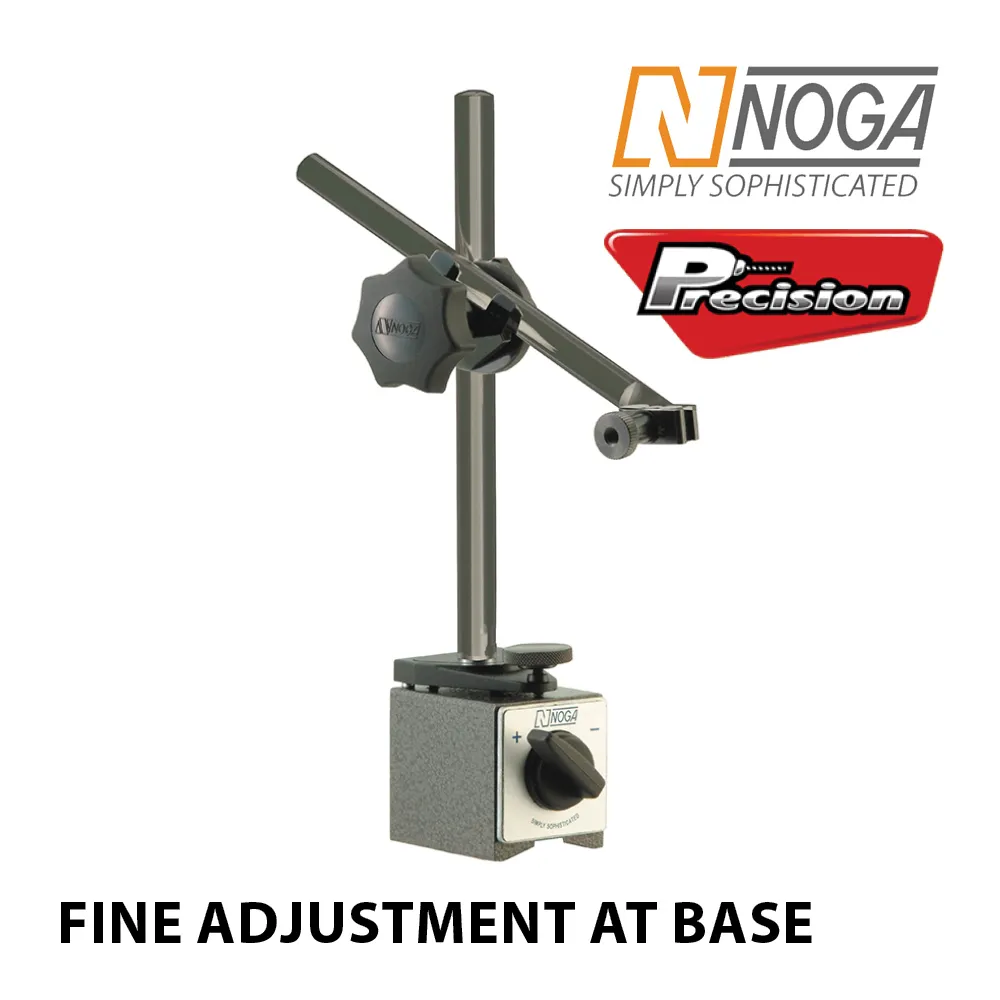

Post Arm Holder Fine Adjustment at the Base

• Improved single direction Fine adjustment at base
• Powerful on/off magnetic base
• Universal Swivel Clamp for all dial and test indicators
• Strong arm lock by using the unique 3-point system
• Easy to set up gauges into required position

• Clamp Holds: 6mm, 8mm,3/8"and dovetail
• Weight: 1.70 Kg
• Post Length and diameter: Ø14 x 203mm
• Arm length and diamter: Ø12 x 185mm
• Magnet Force: 800 N
• Magnet Width: 50mm
• Magnet Length: 60mm
• Magnet Height: 55mm
• Part no. for 3 points clamp: PH0310
• Part no. for universal swivel clamp: FA1410

Noga Links | Includes:

• On/Off magnet with fine adj. - DG3678 (DG3678)
• 3 point clamp 14/12 - PH0310 (PH0310)
• Knob - DG0160 (DG0160)
