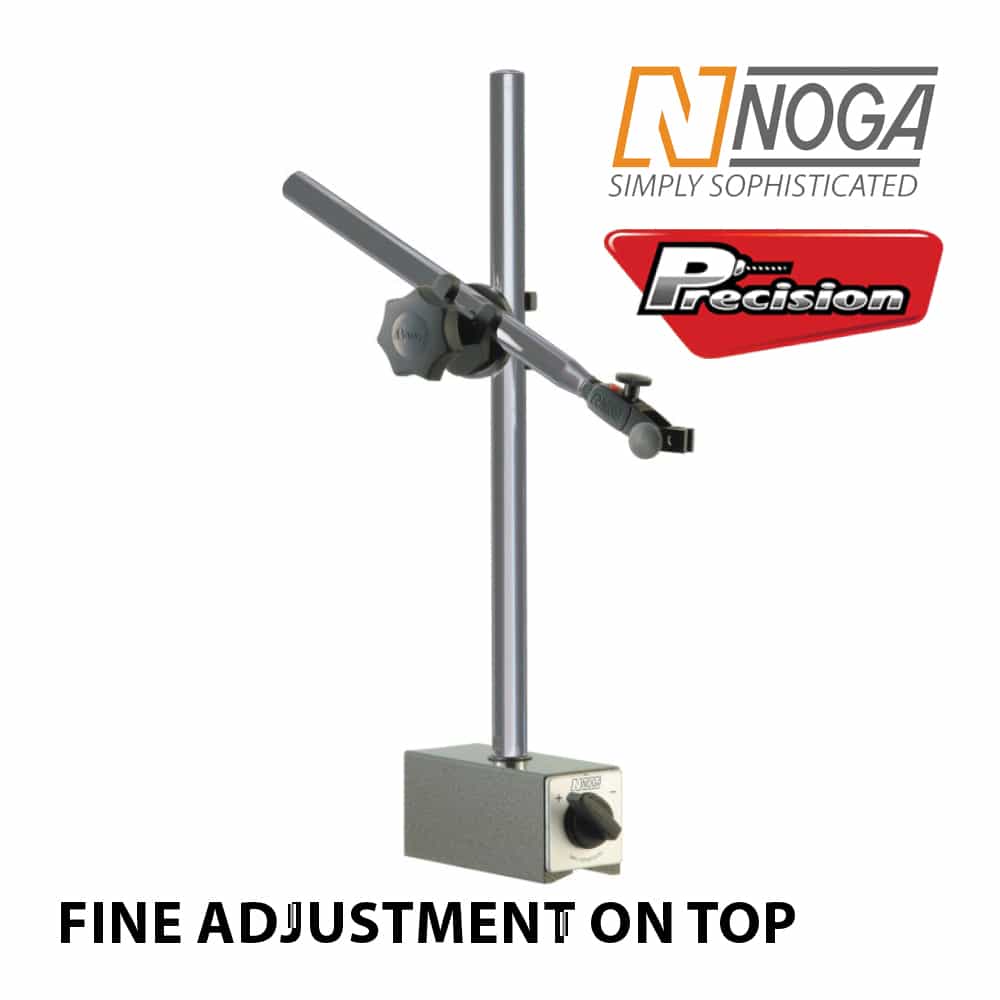

Post Arm Holder Fine Adjustment on Top

• New Fine adjustment on the top with universal swivel clamp
• Powerful on/off magnetic base
• Strong arm lock by using the unique 3-point system
• Easy to set up into required position

Specifications:

• Clamp Holds: 6mm, 8mm,3/8"and dovetail
• Bottom thread: M10 x 1.25
• Weight: 3.45 Kg
• Post Length and diameter: Ø18 x 350mm
• Arm length and diamter: Ø16 x 225mm
• Magnet Force: 1300 N
• Magnet Width: 50mm
• Magnet Length: 120mm
• Magnet Height: 55mm
• order no. for 3 points clamp: PH0313

Noga Links | Includes:

• On/Off magnet - DG0039 (DG0039)
• Zinc Cast fine adjustment - FA1500 (FA1500)
• 3 point clamp 18/16 - PH0313 (PH0313)
• Knob - DG0160 (DG0160)
