Tapered Spindles for Bench Grinders

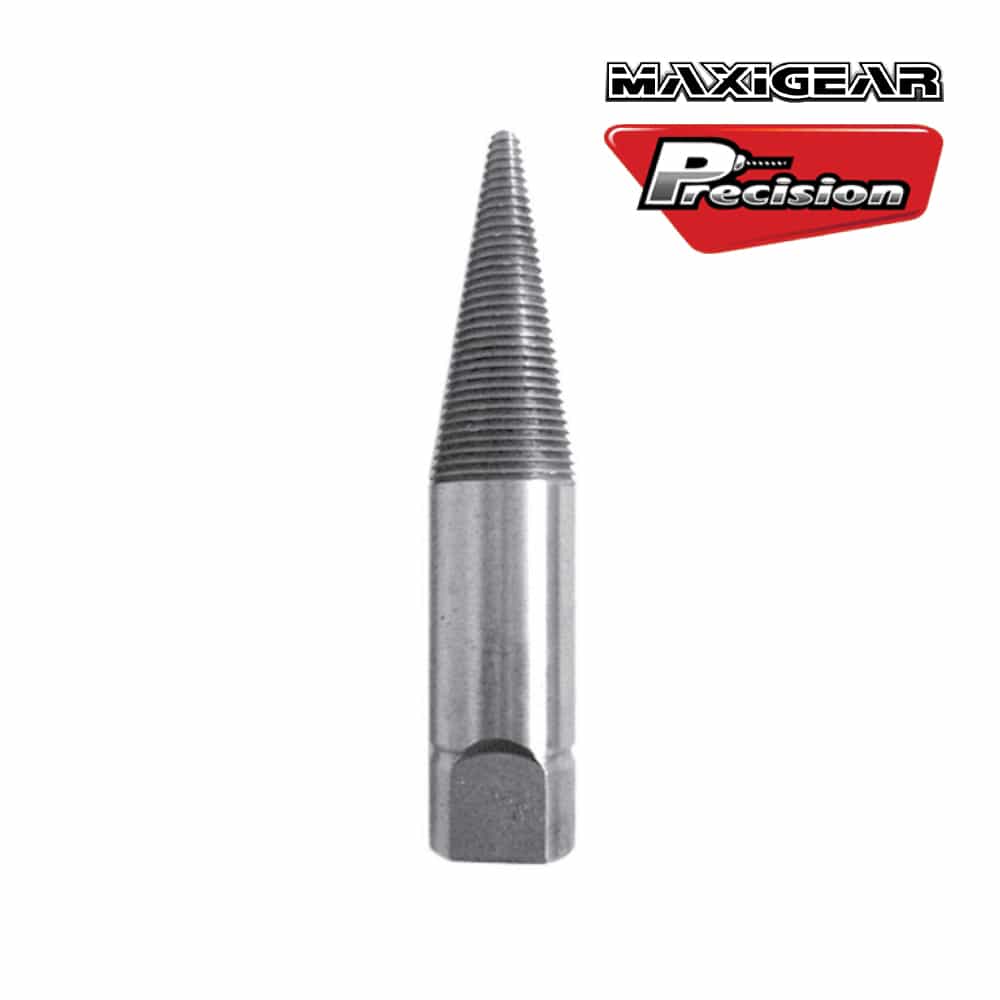

MAXIGEAR Tapered Spindles for Bench Grinders

Note - All lengths are approximate and subject to change as per manufacturer's specifications.

Spindles described as "Pilot" have 10mm untapped hole that can be drilled and tapped.

Manufactured in Australia

Spindles are made of Mild Steel and cannot be heat treated.

SKU	Description
TS12MLH	Spindle Tapered, M12 x 1.75 thread Left Hand 140mm length
TS12MRH	Spindle Tapered, M12 x 1.75 thread Right Hand 140mm length
TS1/2WLH	Spindle Tapered, 1/2 BSW thread Left Hand 140mm length
TS1/2WRH	Spindle Tapered, 1/2 BSW thread Right Hand 140mm length
TS16MLH	Spindle Tapered, M16 x 2.0 thread Left Hand 140mm length
TS16MRH	Spindle Tapered, M16 x 2.0 thread Right Hand 140mm length
TS16X1.5LH	Spindle Tapered, M16 x 1.5 thread Left Hand 140mm length
TS16X1.5RH	Spindle Tapered, M16 x 1.5 thread Right Hand 140mm length
TS5/8WLH	Spindle Tapered, 5/8 BSW thread Left Hand 140mm length
TS5/8WRH	Spindle Tapered, 5/8 BSW thread Right Hand 140mm length
TS5/8FLH	Spindle Tapered, 5/8 UNF thread Left Hand 140mm length
TS5/8FRH	Spindle Tapered, 5/8 UNF thread Right Hand 140mm length
TS5/8PRH	Spindle Tapered, 5/8 inch 10mm untapped Pilot Right Hand 140mm length
TS1WLH	Spindle Tapered, 1 inch BSW thread Left Hand
TS1WRH	Spindle Tapered, 1 inch BSW thread Right Hand
