Venturi Air Movers & Accessories

Air movers or air horns are used whenever there is a need to disperse fumes, move air into confined spaces, or cool machinery or products with a blast of directed air.

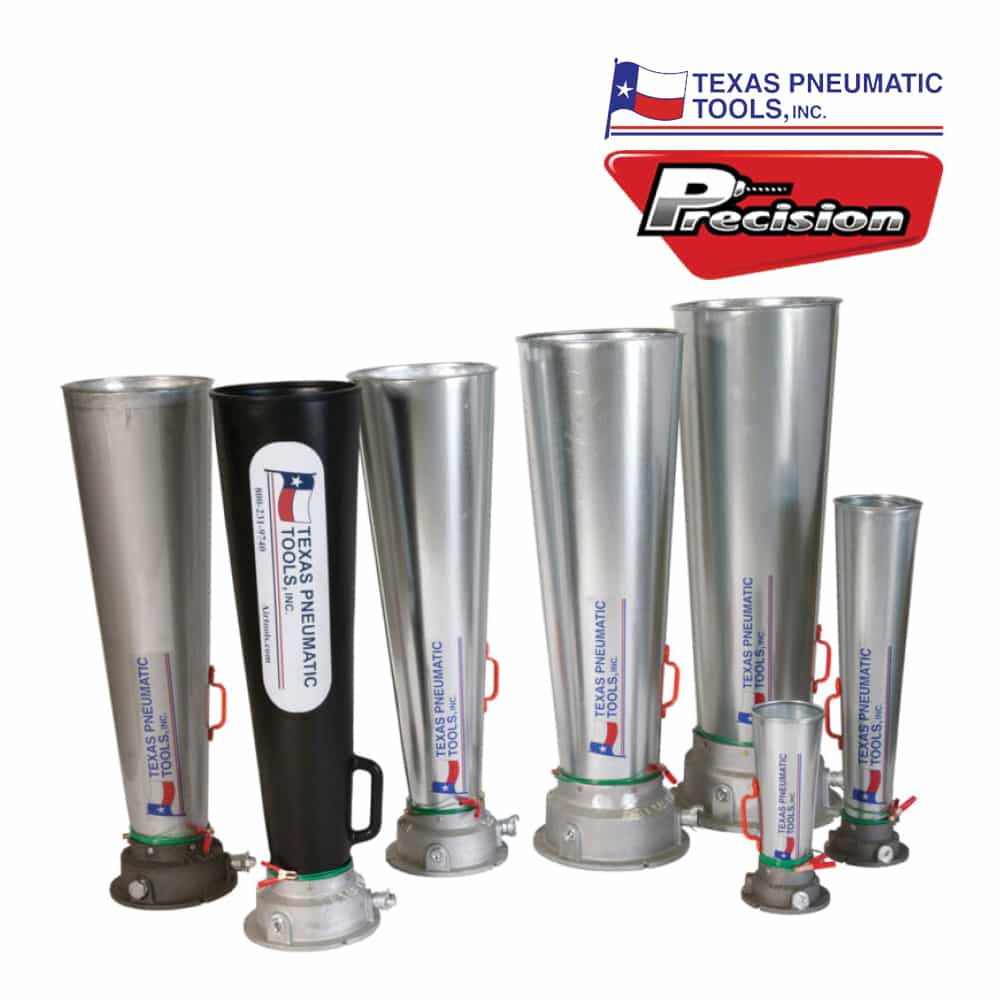

Texas Pneumatic Air Movers

Air Movers, or air horns, are used wherever there is a need to disperse fumes, move air into confined spaces, cool men working in elevated temperature conditions, or cool machinery or products with a blast of directed air. Common applications are found in refineries, chemical plants, utilities and cogeneration units, metal fabrication plants, paper and pulp plants, shipyards, the marine industry and the steel industry.

Texas Pneumatic air movers have been tested at an independent laboratory. The free flow ratings listed are based on tests to AMCA Standard 210. Under identical testing situations, Texas Pneumatic air movers equalled or exceeded the air flow of competitively manufactured air movers.

Features

• No moving parts.

• Used for venting hazardous areas.

• Maintenance is minimal.

• Can be used as a blower or exhauster.

• Operates on compressed air or steam.

• Connection for ground wire.

• Tested at an independent laboratory to AMCA Standard 210, equalling or exceeding the air flow of competitively manufactured air movers!

Texas Pneumatic PVC Coated Ducting with attached bag TX-SAC-N-GO-8

8″ Diameter x 30′ PVC Coated Ducting with attached bag for easy storage and carrying.

The standard ducting is made of single-ply PVC coated polyester fabric with a spring steel wire helix and external PVC wear strip.  The ducting material has been tested to UL-94 Standard and certified as fire retardant.

The ducting has its own storage bag attached to the cuff end.  Simply attach the cuff end to the air movement device and pull the opposite end from the bag and place into position.  When finished, the hose can easily be put back into the bag for storage and caring.  Our design allows multiple bags to be combined for long duct runs.  No additional connectors are needed.  The end of one hose can be inserted into the cuff end of another.  All ducting can be placed on either end of an air mover or fan and used for supply or suction.

The 8″ ducting is designed to be used with the TX-3AMS, TX-3AMS-P, TX-3AM or the TX-3AM-P.
