Welders Angle Clamps - Three Axis

Strong Hand Tools Three Axis Welders Angle Clamps

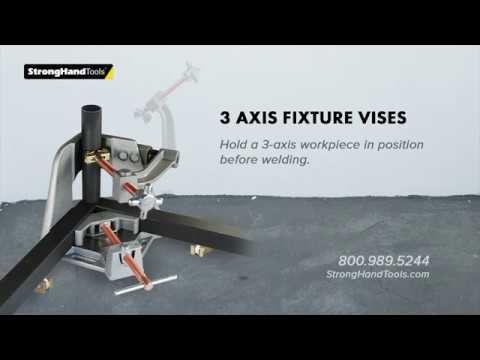

All the features of the 2-axis clamp, plus a third arm which swings out to allow quick and easy removal.

Hold parts in position during cool down to minimize distortion due to contraction.

Two Quick Acting Screws.

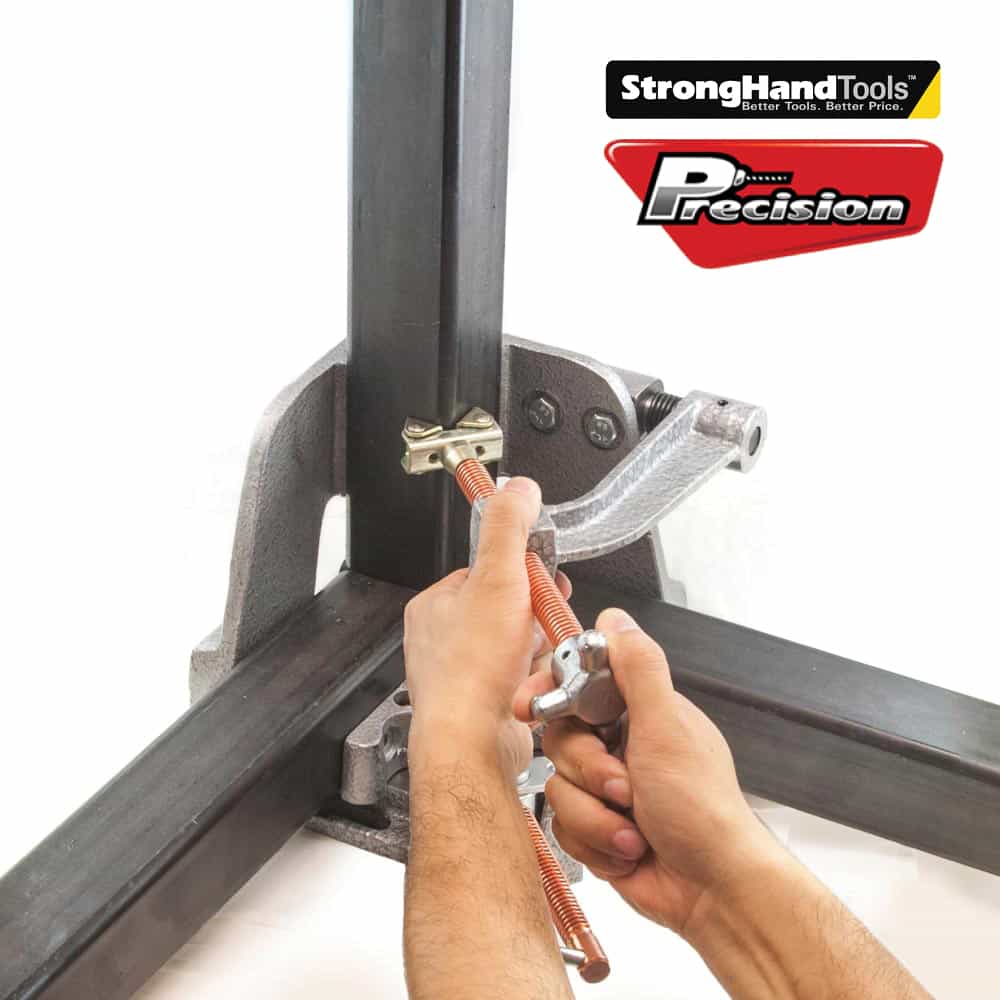

“swing away” the 3rd Axis arm for quick and easy part removal.
Available in 3.75″ (95 mm) and 4.75″ (120 mm) capacities. Model WAC45-SW comes with a curved arm for greater workpiece clearance.

Part No.		A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	H (mm)
WAC35-SW		42	11	95	120	64	36	210
WAC45-SW		51	11	125	135	103	64	245

SKU	Part Number	Description	Price Guide
WAC35-SW		Clamp Welders Angle 3-Axis Small Quick Acting Screw	$660.00
WAC45-SW		Clamp Welders Angle 3-Axis Large Quick Acting Screw	$1,195.00
